ETAVdS CEA 4001 FIRE RESISTANCE SEISMIC ISO

Joker concrete screw assembling rod hanger with internal thread M8/M10. The functionality is the same as the one-piece and much cheaper than one-piece. It is made of zinc-plated steel, high load capacity, easy and quick installation. Designed for applications on pipe routes, sprinkler systems, cable trays and ventilation ducts. The ETA(European Technical Approval) approved enable use in cracked and non-cracked concrete as well as  in precast prestressed hollow core slabs for redundant non-structural systems and classification into fire resistance class R120 guarantee even more safety.
It is Vds CEA 4001 approval.
The new size M10/12 also can meet FM/UL scope and seismic C2.

Internal Thread Size
SIZE
Embedment depth in the concrete (mm)
Drill Diameter(mm)
Wrench Size(mm)
M8/M10
7.5X40
40
6
13
M8/M10
7.5X55
40 / 55
6
13
M10/M12
10.5X60
50 / 60
8
15

Internal Thread Size
Thread Size
Drill Diameter(mm)
Wrench Size(mm)
M8+M10
7.5X40
6
13
M8+M10
7.5X55
6
13
  • The 6 mm diameter concrete screw with an ETA 14/0374 assessment and ETA 21/0177 the redundant non-structural systems performance category for additional safety standards.
  • The design of the concrete screw with hi-low triple thread offers maximum performance when mounting threaded rods or connecting elements and small edge and spacing distance
  • The Joker concrete screw 6mm drill diameter offers the possibility for use in prestressed hollow core slabs, it is an ideal for overhead installation, greatly simplifies the work.
  • The ETA approval of concrete screw allows adjustment and easy to fully remove
  • Different approved embedment depths allow the screws to be used in a wide range of applications, ensuring excellent flexibility.
  • Fire resistance class F120
  • Seismic C2 and Vds CEA 4001

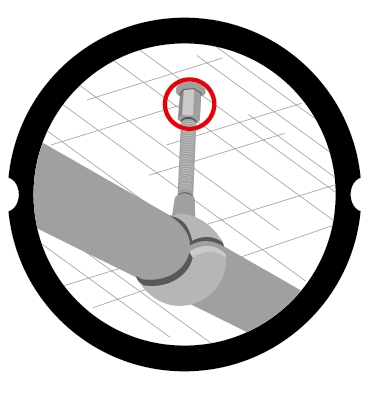

  • Various pipes
  • Sprinkler systems
  • High-racks
  • Railings
  • Piping or ventilation duct
  • Prestressed concrete hollow core ceilings



Building materials

  • Concrete C20/25 to C50/60, cracked and non-cracked
  • Prestressed hollow core concrete slabs, strength C30/37
  • Stone
  • Brick
  • Masonry
  • Solid

How to installation

  1. Drill a hole in the base material, the hole should be drilled deeper than the screw embedment depth according to our ETA installation instruction (pilot hole required)
  2. Clean out the hole of all debris.
  3. Insert the pointed end of the concrete screw through the fixture and into the hole in the base material.
  4. Drive the screw or use powered impact wrench slowly, allowing the threads to tap into the base material.
