Double expansion anchor

Double expansion anchor

double-expansion-anchor
Door-frame-double-expansion-anchor
double-expansion-anchor
Door-frame-double-expansion-anchor
Contact Us

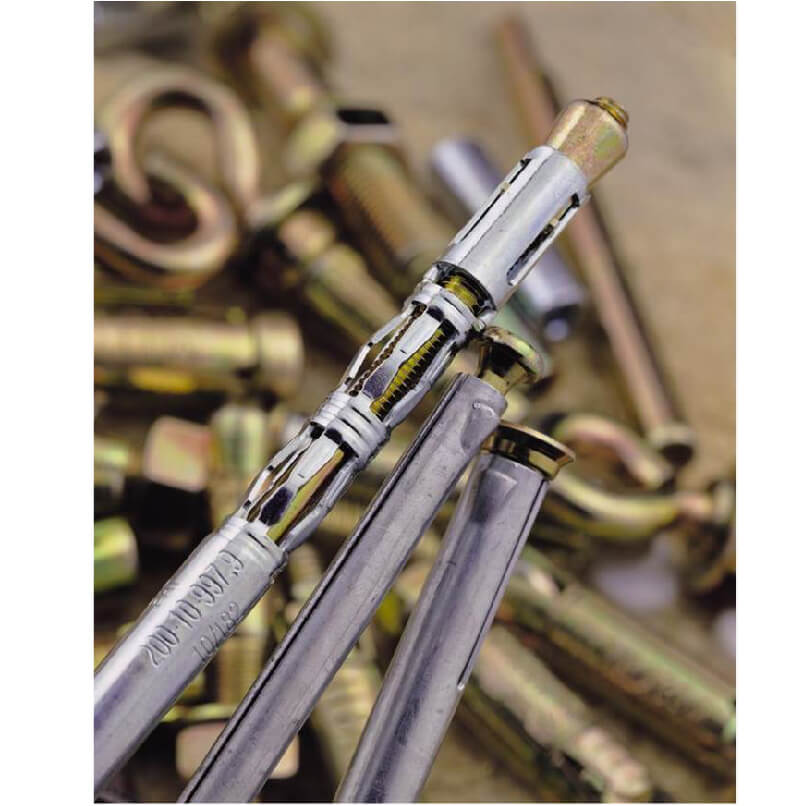

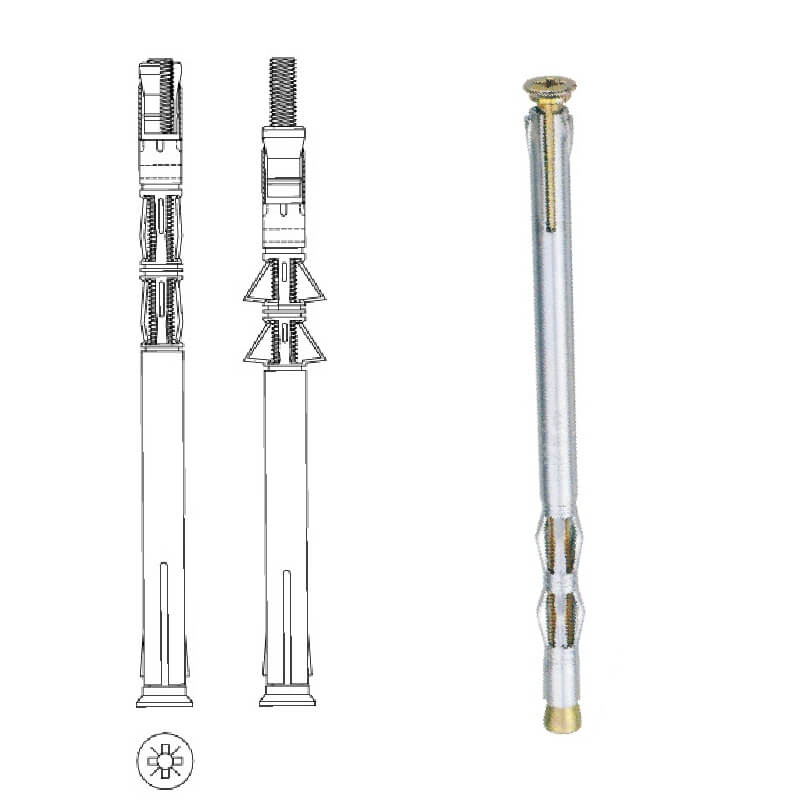

White zinc plated metal frame anchor idea used for securing both door and window frames to most building materials. They are quick and easy to install with the steel sleeve providing strength and durability. The countersunk head allows for a flush fitting. Used for commercial glazing and metal window and door frame installation.

CODE NO.
SIZE
DRILL
MIN. HOLE DRILL DEPTH(mm)
MAX. FIXING LENGTH(mm)
DE1092
10X92
10
40~50
62
DE10112
10X112
10
40~50
82
DE10132
10X132
10
40~50
102
DE10152
10X152
10
40~50
122
DE10182
10X182
10
40~50
152
  • Expansion cone is secured against twist and drop
  • Suitable for attaching window and door frames made of wood, plastic
  • Especially suitable for use in perforated brick masonry and lightweight construction
  • Fire resistance
  • Window mounting
  • Metal frame
  • Substructures



Base material

  • Hollow core, lightweight concrete, stone, brick
