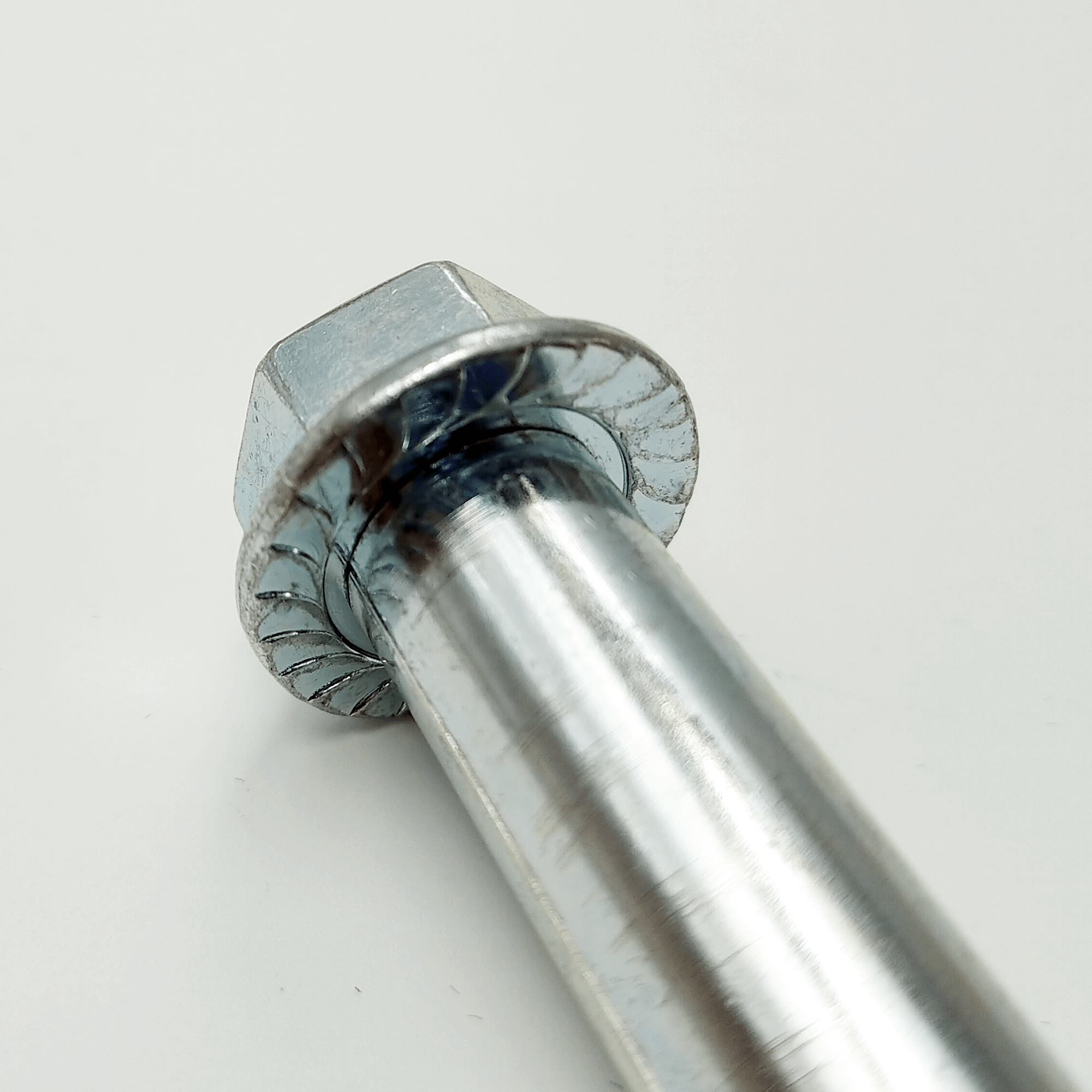

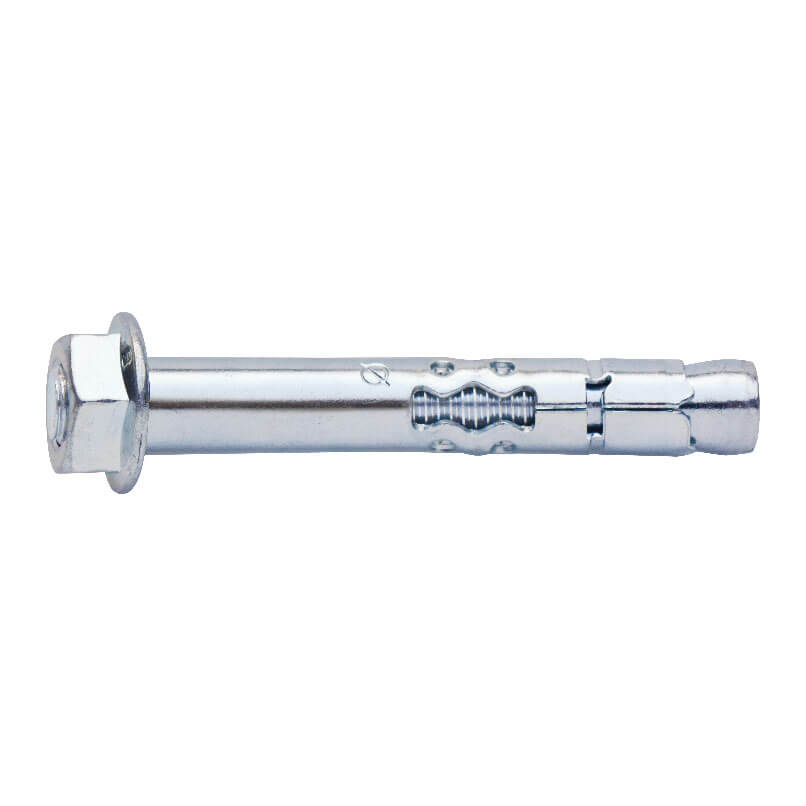

Sleeve anchor flange nut

Sleeve anchor flange nut

Sleeve-anchor-flange
sleeve anchor bolt
sleeve anchor 01
sleeve anchor 02
sleeve anchor 01
sleeve anchor 03
sleeve anchor j type
Sleeve-anchor-flange
sleeve anchor joker
Sleeve-anchor-flange
sleeve anchor bolt
sleeve anchor 01
sleeve anchor 02
sleeve anchor 01
sleeve anchor 03
sleeve anchor j type
Sleeve-anchor-flange
sleeve anchor joker
Contact Us

Joker sleeve anchor is ideal for light or heavy-duty pre-assembled fastening in concrete. Such as cantilevers, handrails, cable trays, and securing the joists of decking. The optimized patent design end user could easily twist and install the anchor. Sleeve anchors work by inserting them into a hole drilled into concrete. Turning the nut pulls the working end of the anchor up through the sleeve, expanding and anchoring itself securely in the concrete, brick or block.

CODE NO.
SIZE
DRILL DIA.
SCREW SIZE
LENGTH
FASTENS MATERIAL UP TO (mm)
SA0625
6.5X25
6.5
M5
25
4
SA0636
6.5X36
6.5
M5
36
12
SA0656
6.5X56
6.5
M5
56
32
SA0840
8X40
8
M6
40
12
SA0865
8X65
8
M6
65
36
SA0885
8X85
8
M6
85
60
SA1040
10X40
10
M8
40
10
SA1050
10X50
10
M8
50
16
SA1060
10X60
10
M8
60
25
SA1075
10X75
10
M8
75
40
SA1095
10X95
10
M8
95
65
SA1260
12X60
12
M10
60
20
SA1275
12X75
12
M10
75
32
SA12100
12X100
12
M10
100
56
SA12130
12X130
12
M10
130
86
SA1665
16X65
16
M12
65
14
SA16110
16X110
16
M12
110
58
SA16145
16X145
16
M12
145
87
SA2075
20X75
20
M16
75
22
SA20105
20X105
20
M16
105
54
SA20150
20X150
20
M16
150
98
  • Patent design for time saving and labor saving
  • Favourable holding values with low anchoring depth
  • Air condition
  • Aerial
  • Park bench
  • Handrails
  • Motorway railing
  • Wooden guardrail
  • Tent



Base material

Concrete, block, brick and most other types of masonry

How to install sleeve anchor

  1. Drill the hole, the holes should be the specified diameter for the anchor that you plan to use and at least 1/2” to 1” deeper than the expected depth of the fixing.



  1. Clean the hole, this is such an important step before installing the sleeve anchor. It ensures proper installation and guarantees the anchor will have maximum holding ability.



  1. Insert the sleeve anchor, tap the anchor with a hammer until the nut and washer are flush with the fixing.



  1. Tighten, use a wrench for hex turn until the installation torque is reached. Do not over-torque as it will affect the fastening value.
