Hex washer head concrete screw is a mainly market favorite application head type.

This head combined with Joker triple Hi-low thread patent design increases its pull out loading, so this screw is perfect for permanent and temporary applications. Available in various sizes to suit your application, concrete screws can be used for a variety of tasks such as solid brick and hollow-core slabs fixing uPVC and timber frames to masonry.

Two ETAs(European Technical Approval) approved enable use in cracked and non-cracked concrete as well as in precast prestressed hollow core slabs for redundant non-structural systems and classification into fire resistance class F120 guarantee even more safety.

There are two coating, zinc plated and 1000  hours salt spray test silver-ruspert coating both available.

SIZE
Embedment depth in the concrete (mm)
DRILL HOLE DIAMETER (mm)
WRENCH SIZE(mm)
7.5X45
40
6
10
7.5X60
40 / 55
6
10
7.5X80
40 / 55
6
10
7.5X100
40 / 55
6
10
7.5X120
40 / 55
6
10
10.5X55
50
8
13
10.5X65
50 / 60
8
13
10.5X75
50 / 60
8
13
10.5X90
50 / 60
8
13
10.5X110
50 / 60
8
13
10.5X130
50 / 60
8
13
10.5X150
50 / 60
8
13
12.5X65
60
10
15
12.5X75
60 / 70
10
15
12.5X85
60 / 70 / 85
10
15
12.5X100
60 / 70 / 85
10
15
12.5X120
60 / 70 / 85
10
15
12.5X140
60 / 70 / 85
10
15
12.5X160
60 / 70 / 85
10
15
12.5X200
60 / 70 / 85
10
15
14.2X80
75 / 105
12
16
14.2X90
75 / 105
12
16
14.2X110
75 / 105
12
16
14.2X130
75 / 105
12
16
14.2X150
75 / 105
12
16
16.5X80
75
14
18
16.5X115
75 / 110
14
18
16.5X135
75 / 110
14
18
16.5X160
75 / 110
14
18

SIZE
THREAD LENGTH
DRILL HOLE DIAMETER (mm)
WRENCH SIZE(mm)
6.3X30
FULL THREAD
5
8
6.3X40
FULL THREAD
5
8
6.3X50
40
5
8
6.3X60
40
5
8
7.5X35
FULL THREAD
6
10
7.5X45
FULL THREAD
6
10
7.5X60
55
6
10
7.5X80
55
6
10
7.5X100
55
6
10
7.5X120
55
6
10
10.5X55
FULL THREAD
8
13
10.5X65
60
8
13
10.5X75
60
8
13
10.5X90
60
8
13
10.5X110
60
8
13
10.5X130
60
8
13
10.5X150
60
8
13
12.5X65
FULL THREAD
10
15
12.5X75
70
10
15
12.5X85
70
10
15
12.5X100
70
10
15
12.5X120
70
10
15
12.5X140
70
10
15
12.5X160
70
10
15
12.5X200
70
10
15
14.2X80
FULL THREAD
12
16
14.2X90
80
12
16
14.2X110
80
12
16
14.2X130
80
12
16
14.2X150
80
12
16
16.5X80
FULL THREAD
14
18
16.5X115
110
14
18
16.5X135
110
14
18
16.5X160
110
14
18
SIZE
THREAD LENGTH
DRILL HOLE DIAMETER (inch)
WRENCH SIZE(inch)
1/4"X1-3/4"
FULL THRAED
1/4"
3/8"
1/4"X2-1/4"
2.17"
1/4"
3/8"
1/4"X3"
2.17"
1/4"
3/8"
5/16"X2
FULL THREAD
5/16"
1/2"
5/16"X2-1/4"
FULL THREAD
5/16"
1/2"
5/16"X2-1/2"
2-3/8"
5/16"
1/2"
5/16"X3
2-3/8"
5/16"
1/2"
5/16"X4
2-3/8"
5/16"
1/2"
5/16"X5
2-3/8"
5/16"
1/2"
3/8"X1-3/4"
FULL THREAD
3/8"
9/16"
3/8"X2-1/2"
FULL THREAD
3/8"
9/16"
3/8"X3"
2-3/4"
3/8"
9/16"
3/8"X4"
2-3/4"
3/8"
9/16"
3/8"X5"
2-3/4"
3/8"
9/16"
3/8"X6"
2-3/4"
3/8"
9/16"
1/2"X2-1/2"
FULL THREAD
1/2"
3/4"
1/2"X3"
FULL THREAD
1/2"
3/4"
1/2"X4"
3-1/6"
1/2"
3/4"
1/2"X5"
3-1/6"
1/2"
3/4"
1/2"X6"
3-1/6"
1/2"
3/4"
5/8"X4"
FULL THREAD
5/8"
15/16"
5/8"X5"
4"
5/8"
15/16"
5/8"X6"
4"
5/8"
15/16"
  • Joker concrete screw with an ETA 14/0374 assessment and ETA 21/0177 the redundant non-structural systems performance category for additional safety standards.
  • The design of the concrete screw with hi-low triple thread offers maximum performance.
  • The non-expansion anchorage system enables low edge and axial clearances.
  • The Joker concrete screw 6mm drill diameter offers the possibility for use in prestressed hollow core slabs, it is an ideal for overhead installation, greatly simplifies the work.
  • Adjustment and easy to fully remove
  • Different approved embedment depths allow the screws to be used in a wide range of applications, ensuring excellent flexibility.
  • Fire resistance class F120
  • Balustrading, handrails and Guard rails
  • Consoles/Base plates
  • Metal profiles

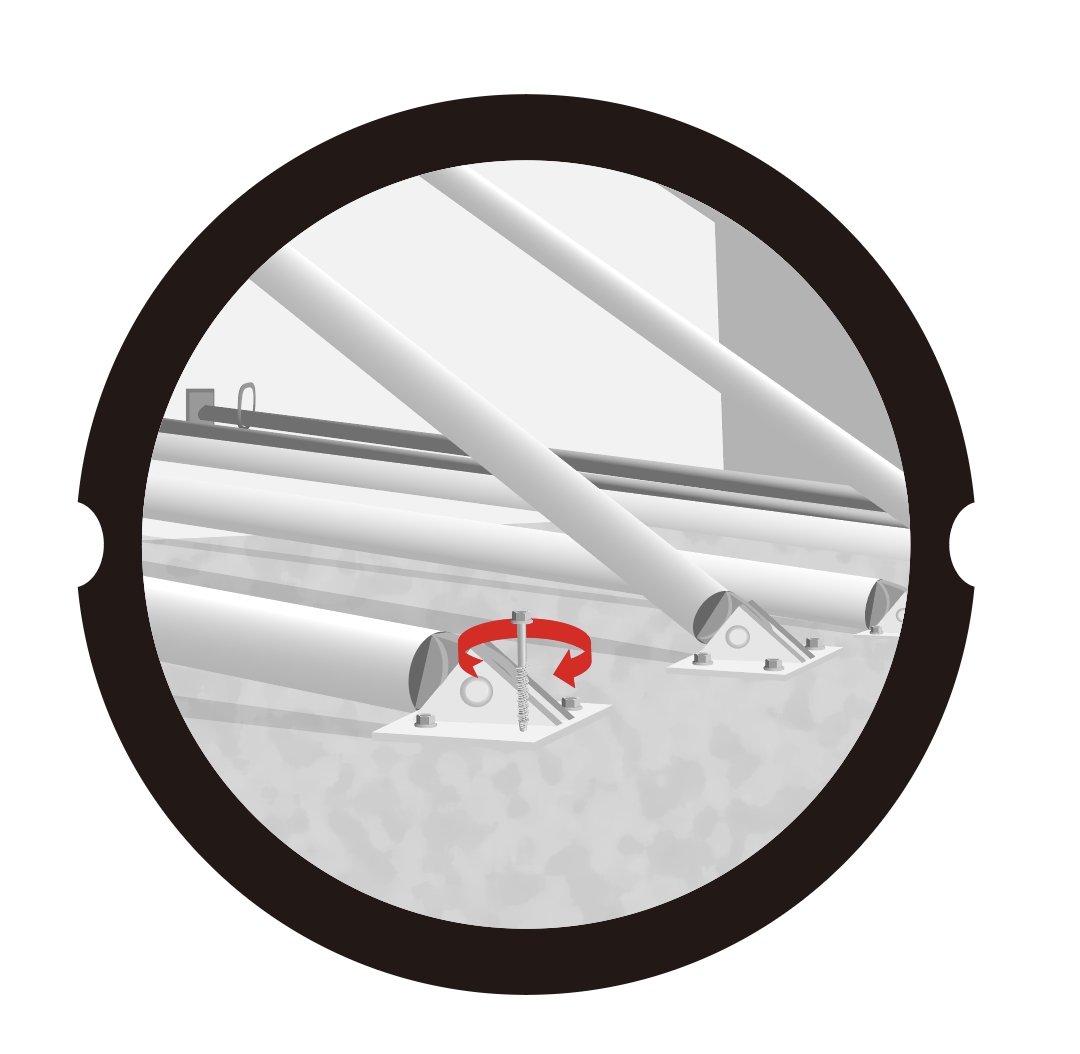

  • Steel constructions
  • Façades
  • Protection barriers
  • Formwork support systems

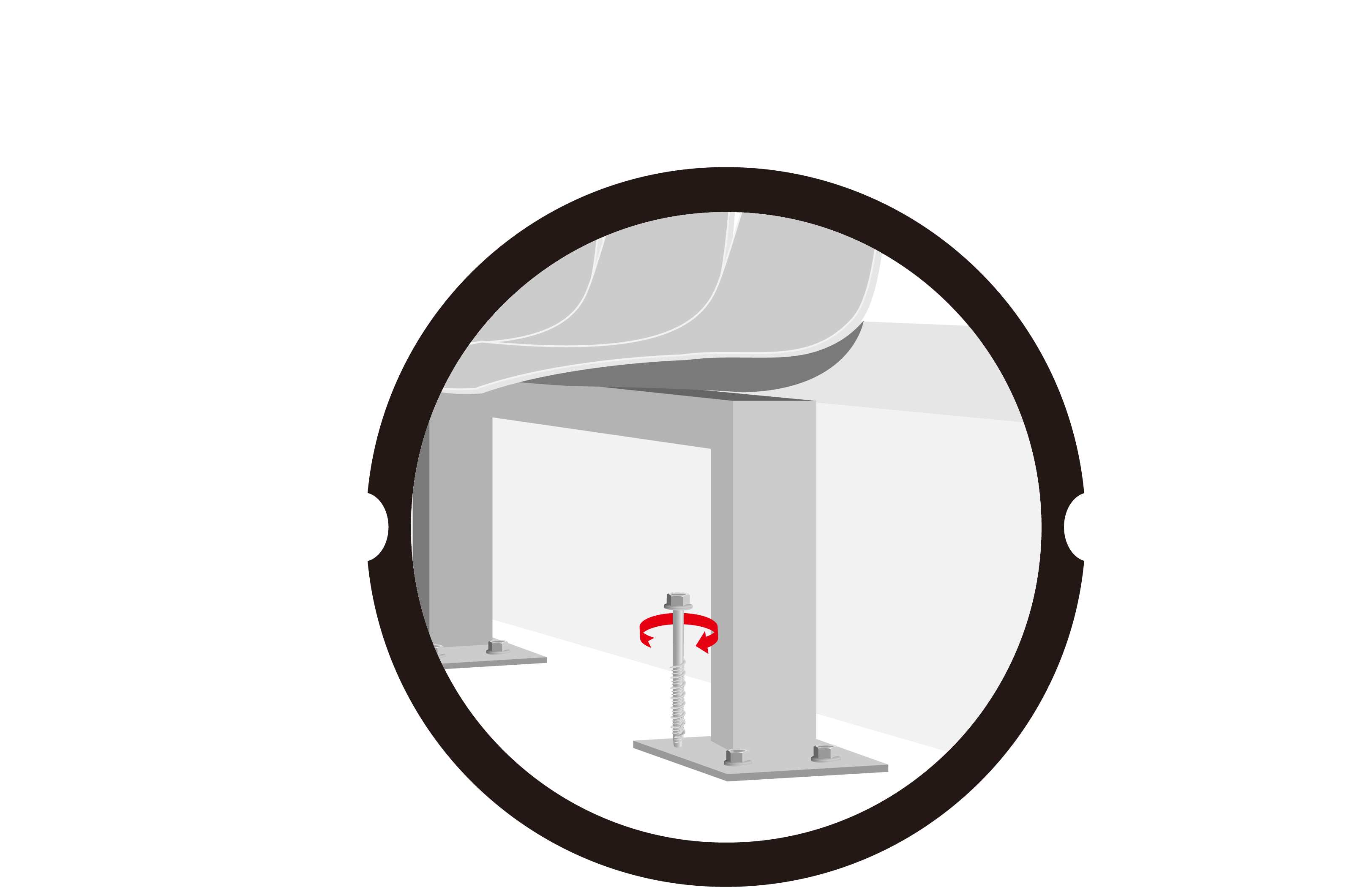

  • Public seat fixing
  • Facility fixing
  • Scaffolding



Building materials

  • Concrete C20/25 to C50/60, cracked and non-cracked
  • Prestressed hollow core concrete slabs, strength C30/37
  • Stone
  • Brick
  • Masonry
  • Solid

How to installation

  1. Drill a hole in the base material, the hole should be drilled deeper than the screw embedment depth according to our ETA installation instruction (pilot hole required)
  2. Clean out the hole of all debris.
  3. Insert the pointed end of the concrete screw through the fixture and into the hole in the base material.
  4. Drive the screw or use powered impact wrench slowly, allowing the threads to tap into the base material.
Video
