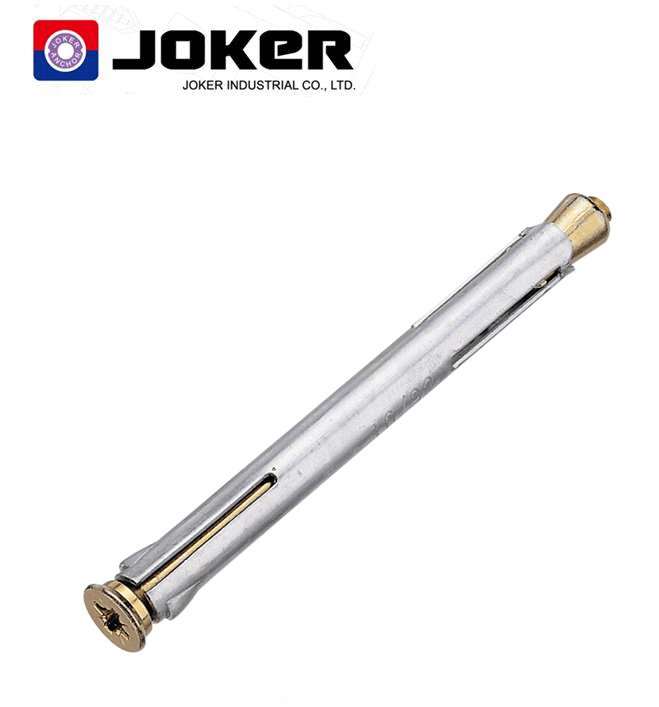

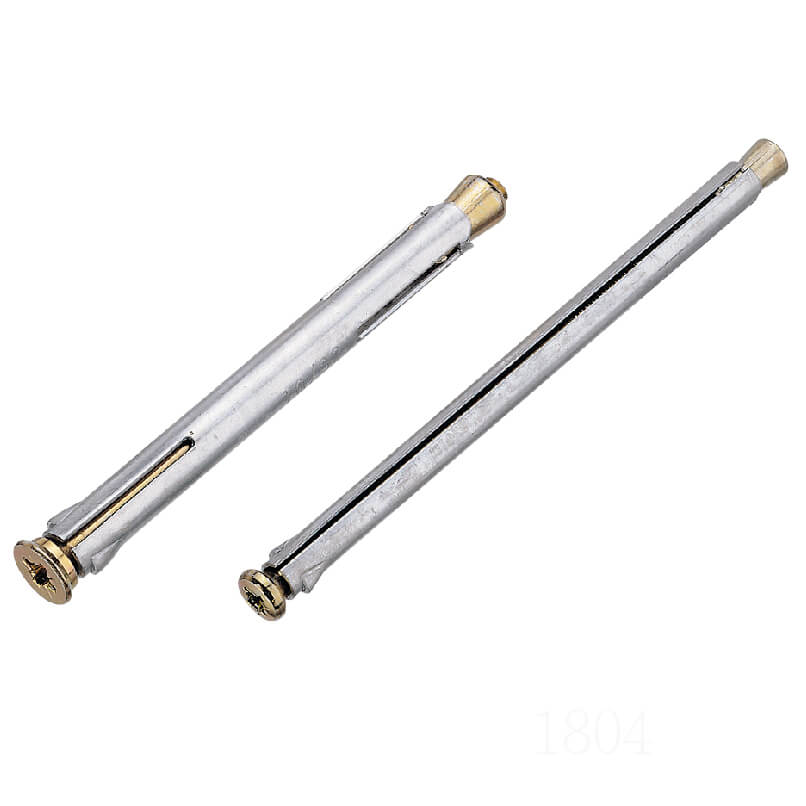

White zinc plated metal frame anchor idea used for securing both door and window frames to most building materials. They are quick and easy to install with the steel sleeve providing strength and durability. The countersunk head allows for a flush fitting. Used for commercial glazing and metal window and door frame installation.

CODE NO.
SIZE
DRILL
MIN. HOLE DRILL DEPTH(mm)
MAX. FIXING LENGTH(mm)
MF0872
8X72
8
40~50
42
MF0892
8X92
8
40~50
62
MF08112
8X112
8
40~50
82
MF08132
8X132
8
40~50
102
MF08172
8X172
8
40~50
142
MF1072
10X72
10
40~50
42
MF1092
10X92
10
40~50
62
MF10112
10X112
10
40~50
82
MF10132
10X132
10
40~50
102
MF10152
10X150
10
40~50
122
MF10182
10X182
10
40~50
152
MF10202
10X202
10
40~50
172

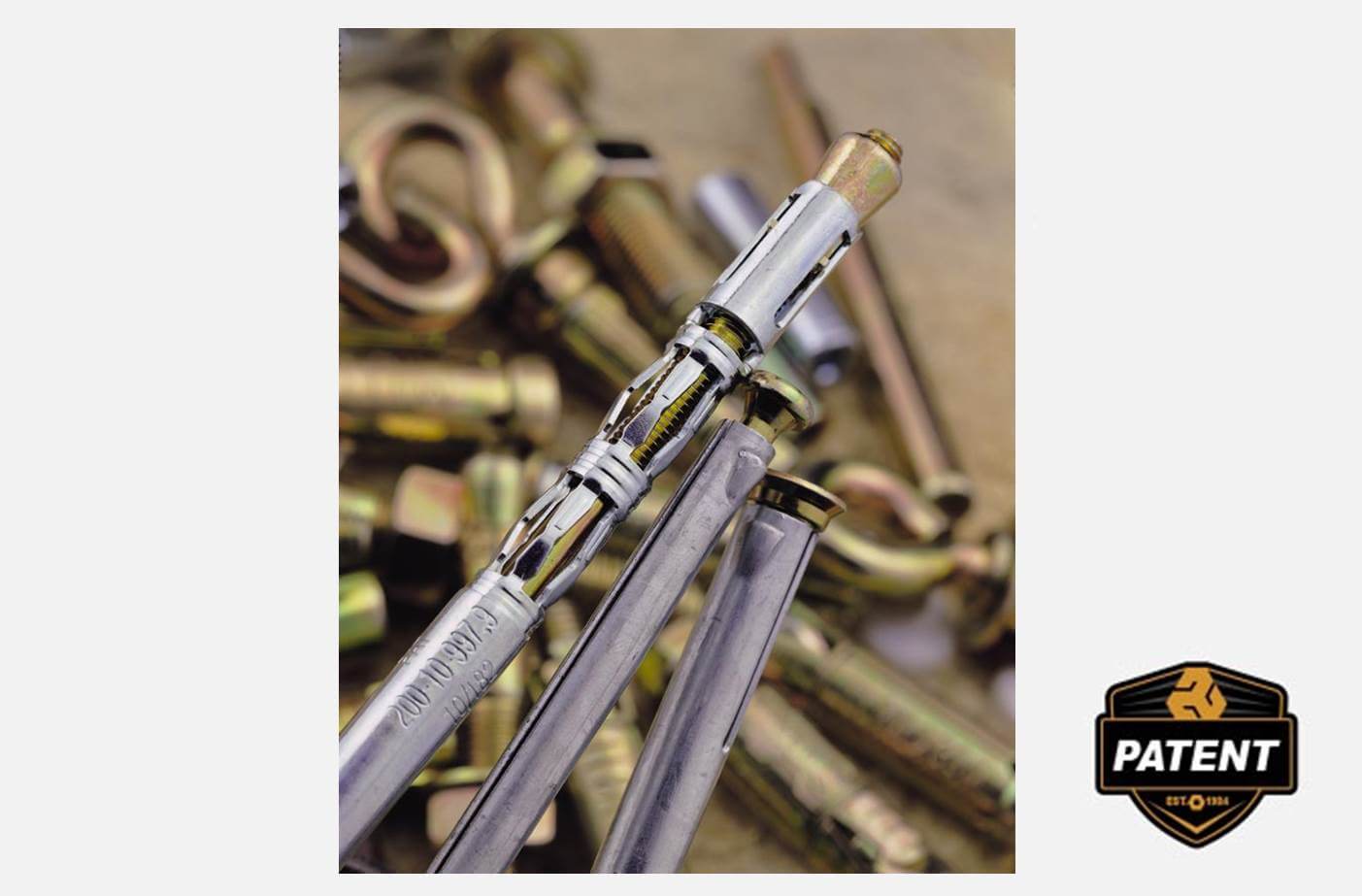

  • Expansion cone is secured against twist and drop
  • Suitable for attaching window and door frames made of wood, plastic
  • Especially suitable for use in perforated brick masonry and lightweight construction
  • Fire resistance
  • Window mounting
  • Metal frame
  • Substructures



Base material

  • Hollow core, lightweight concrete, stone, brick
