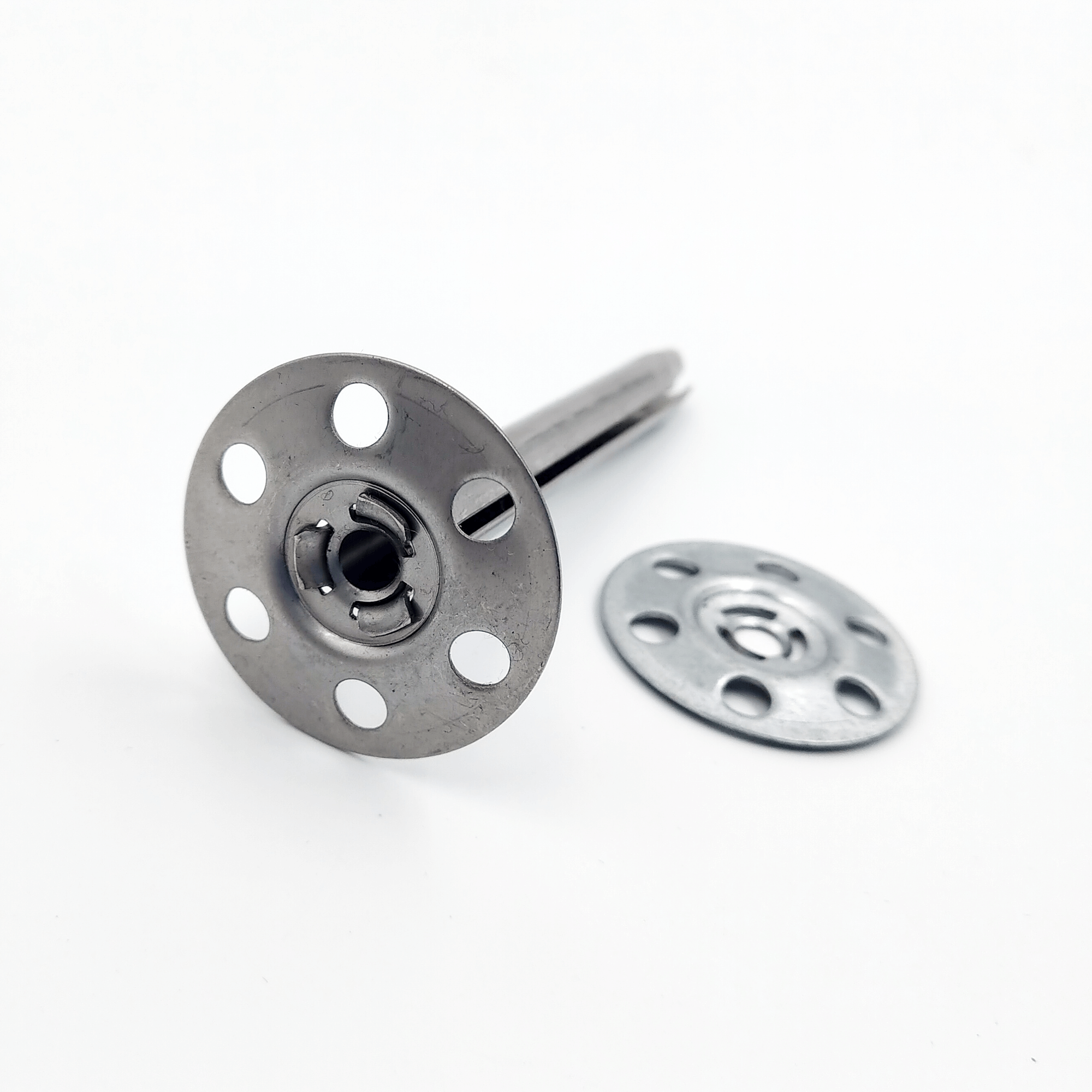

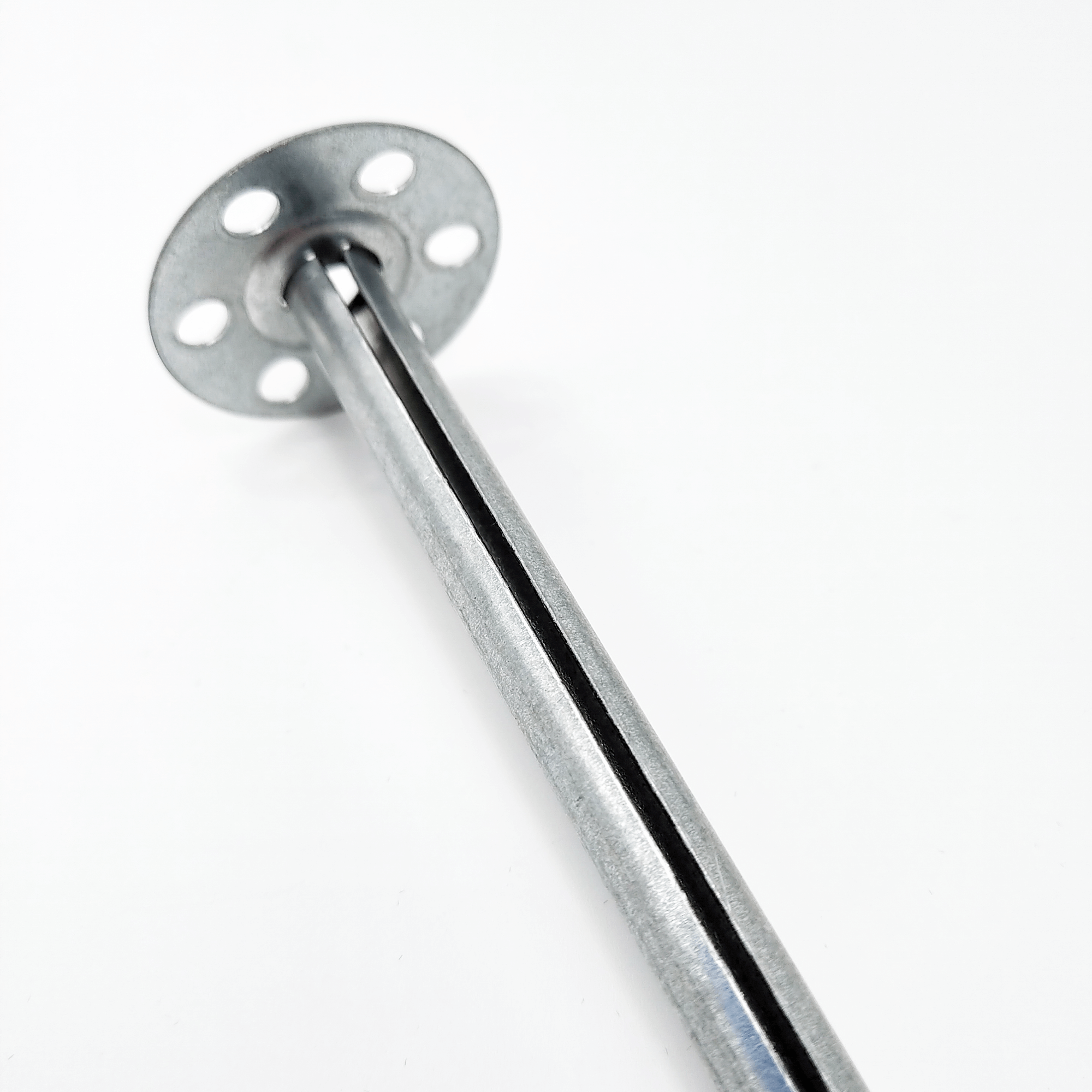

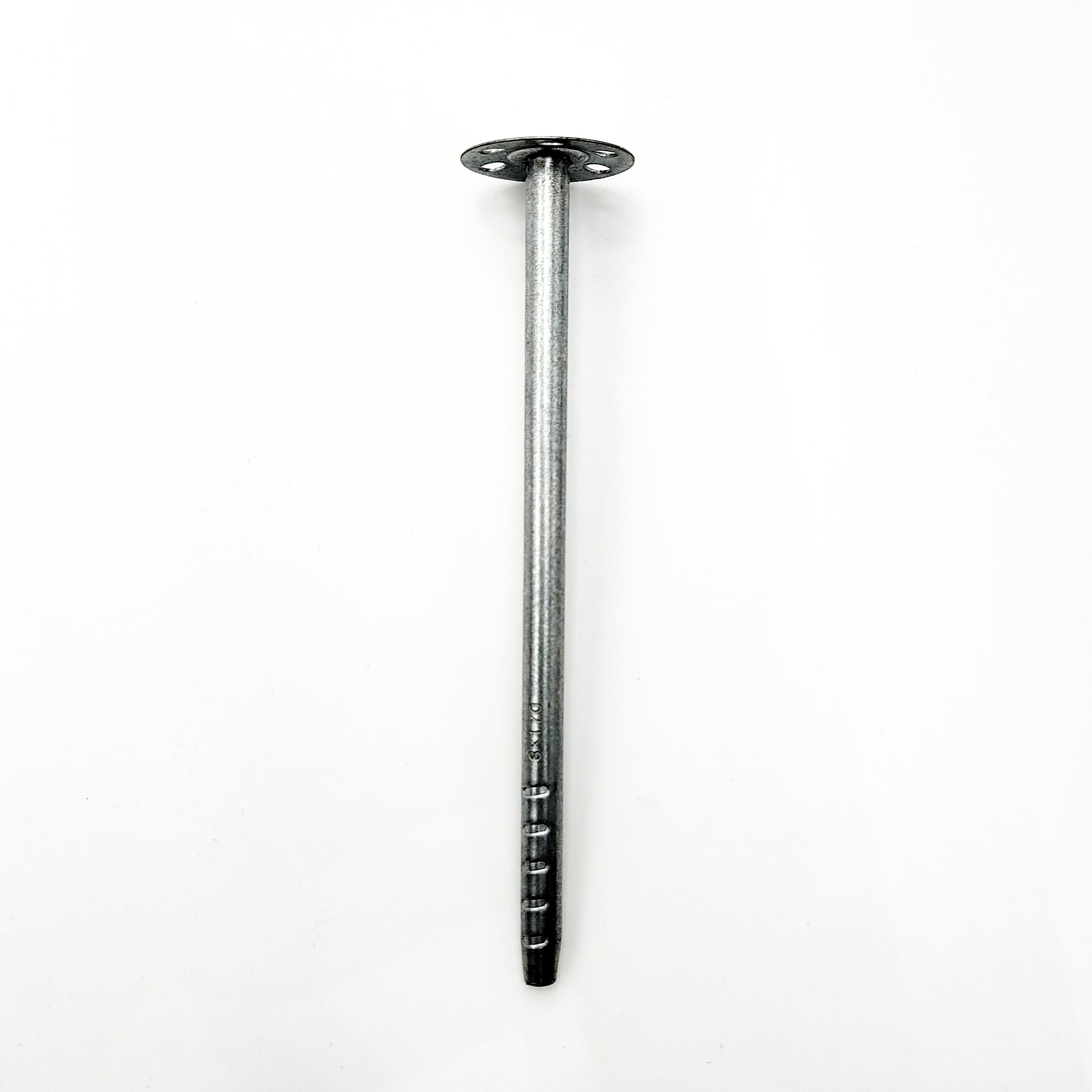

Metal insulation plug with galvanized is design for easy to hammer in and fixing the insulation boards into concrete or masonry. The product expands along its full length for a secure fixing and is quick and easy to install.

CODE NO.
SIZE
Length (mm)
Suitable for insulation material (mm)
Drill (mm)
Min. Setting Depth (mm)
IP08040
8X40
40
0-10
8
30
IP08050
8X50
50
0-20
8
30
IP08060
8X60
60
0-25
8
35
IP08070
8X70
70
0-30
8
40
IP08080
8X80
80
0-30
8
50
IP08090
8X90
90
10-40
8
50
IP08110
8X110
110
30-60
8
50
IP08140
8X140
140
60-90
8
50
IP08170
8X170
170
90-120
8
50
IP08200
8X200
200
120-150
8
50
IP08210
8X210
210
130-160
8
50
IP08240
8X240
240
160-190
8
50
IP08250
8X250
250
170-200
8
50
IP08300
8X300
300
220-250
8
50
  • Zinc galvanized sheet, better and stronger than plastic
  •  Fire resistance
  •  Quick and simple to hammer setting
  • To fix for soft and pressure-resistant insulation material, eg: glass wool, rock         wool, cork boards
  • No additional screws and nails

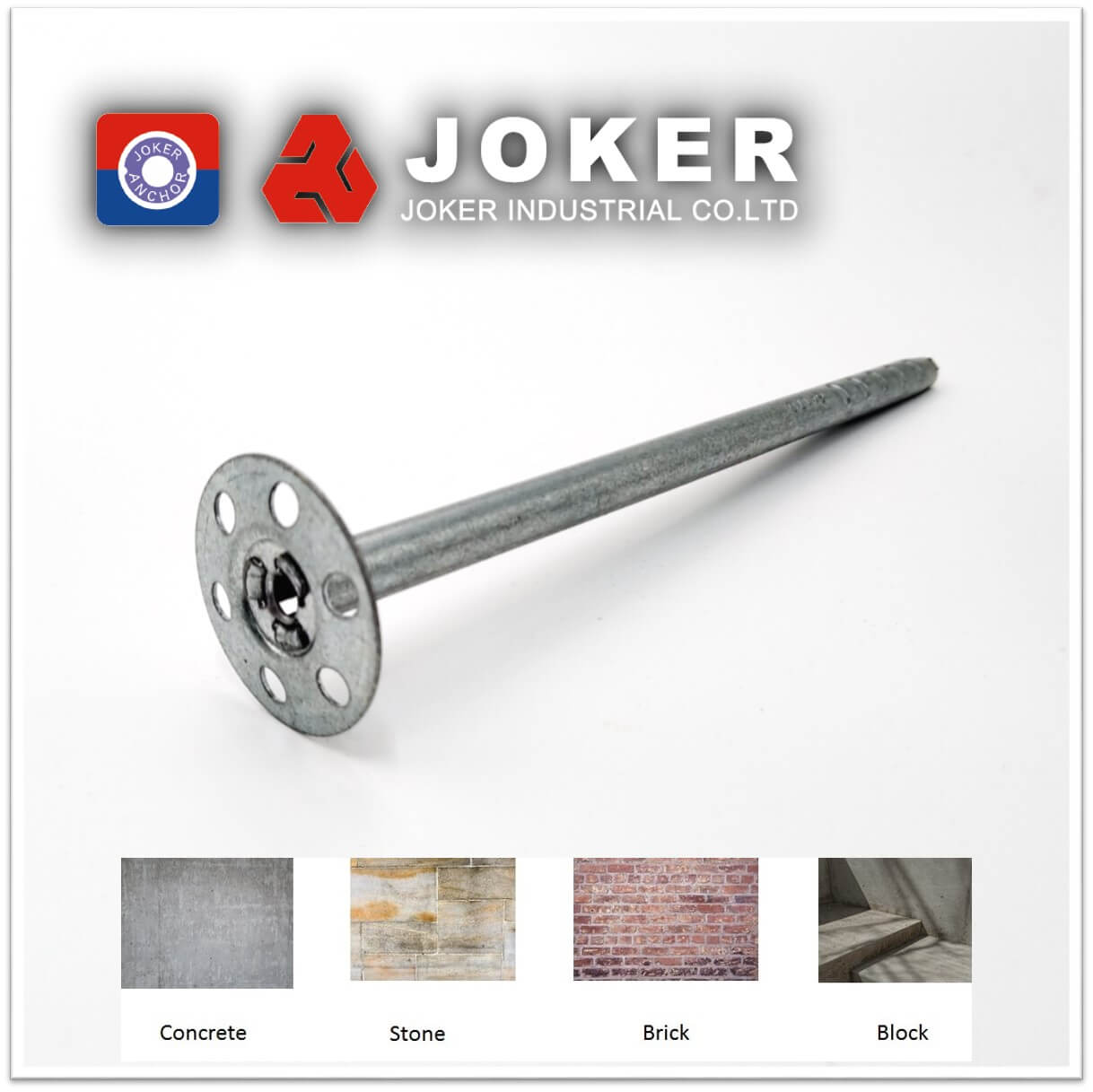

Concrete, solid brick, solid block, stone and masonry
