ETA CE markVdS CEA 4001 certificatedF120 Fire resistance sesimic C1 and C2 level ISO-9001

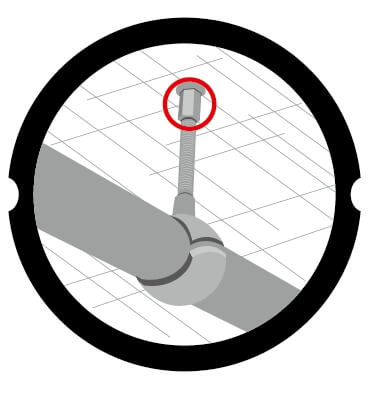

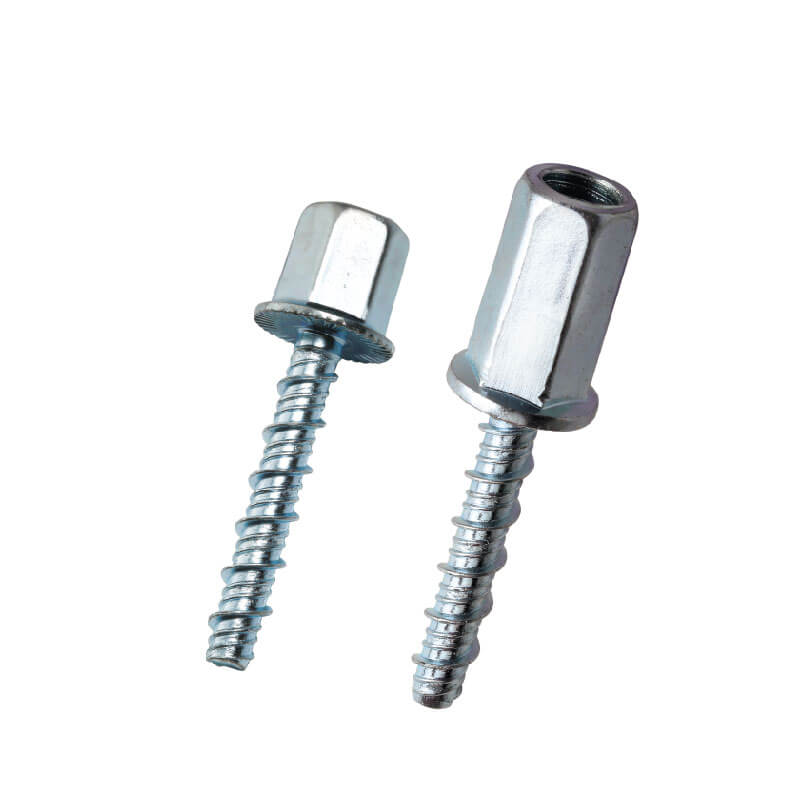

Joker concrete screw rod hanger with internal thread M8+M10 is made of zinc-plated steel, high load capacity, easy and quick installation. It is designed for applications like fixing of pipe routes, sprinkler systems, cable trays and ventilation ducts. The ETA(European Technical Approval) approved enable use in cracked and non-cracked concrete as well as  in precast prestressed hollow core slabs for redundant non-structural systems and classification into fire resistance class F120 guarantee even more safety.

It is Vds CEA 4001 approval.
New internal thread M10/M12 also can meet FM/UL  scope.

Internal Thread Size
SIZE
Embedment depth (mm)
DRILL HOLE DIAMETER (mm)
WRENCH SIZE(mm)
M8
7.5X40
40
6
10
M8
7.5X55
40
6
10
M10
7.5X40
40
6
13
M10
7.5X50
40
6
13
M10
7.5X55
40 / 55
6
13
M8+M10
7.5X40
40
6
13
M8+M10
7.5X50
40
6
13
M8+M10
7.5X55
40 / 55
6
13
3/8"
7.5X40
40
6
13

Internal Thread Size
Thread size
DRILL HOLE DIAMETER (mm)
WRENCH SIZE(mm)
M6
6.3X50
5
8
M8
7.5X40
6
10
M8
7.5X50
6
10
M10
7.5X40
6
13
M10
7.5X50
6
13
M10
7.5X55
6
13
M8+M10
7.5X40
6
13
M8+M10
7.5X50
6
13
M8+M10
7.5X55
6
13
3/8
7.5X40
6
13
  • The 6 mm diameter concrete screw with an ETA 14/0374 assessment and ETA 21/0177 the redundant non-structural systems performance category for additional safety standards.
  • The design of the concrete screw with hi-low triple thread offers maximum performance when mounting threaded rods or connecting elements and small edge and spacing distance
  • The Joker concrete screw 6mm drill diameter offers the possibility for use in prestressed hollow core slabs, it is an ideal for overhead installation, greatly simplifies the work.
  • The ETA approval of concrete screw allows adjustment and easy to fully remove
  • Different approved embedment depths allow the screws to be used in a wide range of applications, ensuring excellent flexibility.
  • Fire resistance class F120
  • Seismic C2 and Vds CEA 4001
  • Various pipes
  • Sprinkler systems
  • High-racks
  • Railings
  • Piping or ventilation duct
  • Prestressed concrete hollow core ceilings



Building materials

  • Concrete C20/25 to C50/60, cracked and non-cracked
  • Prestressed hollow core concrete slabs, strength C30/37
  • Stone
  • Brick
  • Masonry
  • Solid
  1. Drill a hole in the base material, the hole should be drilled deeper than the screw embedment depth according to our ETA installation instruction (pilot hole required)
  2. Clean out the hole of all debris.
  3. Insert the pointed end of the concrete screw through the fixture and into the hole in the base material.
  4. Drive the screw or use powered impact wrench slowly, allowing the threads to tap into the base material.
